Industrial fan aRil eco
The aRil eco fan is a modern, economical design that provides exceptional efficiency with reduced costs. Its housing, made of high-quality polymer materials, houses a reliable single-phase induction motor that drives a radial turbine, ensuring optimal performance.
Ø 75
Ø 100
Ø 125
Ø 150
Ø 160
Ø 200
Ø 250
Ø 310
Description
Models and technical data
Documents
Description
aRil eco duct fans are the ideal solution for industrial spaces such as workshops, halls, warehouses, and garages, where efficient ventilation is crucial.
These fans can be controlled using speed controllers. They feature a single-phase asynchronous induction motor designed for continuous operation, a centrifugal turbine, and a housing made of polymer materials.
Models and technical data
| diameter | code | air flow | static pressure | voltage frequency | rev (1/min) | motor power | current | max. work temp. | protection degree | net weight | gross weight |
| 75 | 01-310 | 140 m3/h | 132 Pa | 220-230 V ~50 Hz | 2820 | 30 W | 0,13 A | -20 ~ +50 °C | IPX2 | 1,19 kg | 1,39 kg |
| 100 | 01-311 | 210 m3/h | 147 Pa | 220-230 V ~50 Hz | 2770 | 30 W | 0,14 A | -20 ~ +50 °C | IPX2 | 1,21 kg | 1,42 kg |
| 125 | 01-312 | 360 m3/h | 147 Pa | 220-230 V ~50 Hz | 2615 | 43 W | 0,18 A | -20 ~ +50 °C | IPX2 | 1,49 kg | 1,78 kg |
| 150 | 01-313 | 560 m3/h | 350 Pa | 220-230 V ~50 Hz | 2530 | 70 W | 0,31 A | -20 ~ +50 °C | IPX2 | 2 kg | 2,39 kg |
| 160 | 01-314 | 560 m3/h | 350 Pa | 220-230 V ~50 Hz | 2530 | 70 W | 0,31 A | -20 ~ +50 °C | IPX2 | 2,24 kg | 2,60 kg |
| 200 | 01-315 | 1400 m3/h | 350 Pa | 220-230 V ~50 Hz | 2485 | 165 W | 0,64 A | -20 ~ +50 °C | IPX2 | 3 kg | 3,42 kg |
| 250 | 01-316 | 1800 m3/h | 460 Pa | 220-230 V ~50 Hz | 2650 | 180 W | 0,9 A | -20 ~ +50 °C | IPX2 | 5,44 kg | 6 kg |
| 310 | 01-317 | 2550 m3/h | 730 Pa | 220-230 V ~50 Hz | 2510 | 275 W | 1,3 A | -20 ~ +50 °C | IPX2 | 7,85 kg | 8,70 kg |
| diameter | code | air flow | static pressure | voltage frequency | rev (1/min) | motor power | max. operating temperature | degree of protection | net weight | gross weight |
| 75 | 01-310 | 140 m3/h | 132 Pa | 220-230 V ~50 Hz | 2820 | 30 W | -20 ~ +50 °C | IPX2 | 1,19 kg | 1,39 kg |
| 100 | 01-311 | 210 m3/h | 147 Pa | 220-230 V ~50 Hz | 2770 | 30 W | -20 ~ +50 °C | IPX2 | 1,21 kg | 1,42 kg |
| 125 | 01-312 | 360 m3/h | 147 Pa | 220-230 V ~50 Hz | 2615 | 43 W | -20 ~ +50 °C | IPX2 | 1,49 kg | 1,78 kg |
| 150 | 01-313 | 560 m3/h | 350 Pa | 220-230 V ~50 Hz | 2530 | 70 W | -20 ~ +50 °C | IPX2 | 2 kg | 2,39 kg |
| 160 | 01-314 | 560 m3/h | 350 Pa | 220-230 V ~50 Hz | 2530 | 70 W | -20 ~ +50 °C | IPX2 | 2,24 kg | 2,60 kg |
| 200 | 01-315 | 1400 m3/h | 350 Pa | 220-230 V ~50 Hz | 2485 | 165 W | -20 ~ +50 °C | IPX2 | 3 kg | 3,42 kg |
| 250 | 01-316 | 1800 m3/h | 460 Pa | 220-230 V ~50 Hz | 2650 | 180 W | -20 ~ +50 °C | IPX2 | 5,44 kg | 6 kg |
| 310 | 01-317 | 2550 m3/h | 730 Pa | 220-230 V ~50 Hz | 2510 | 275 W | -20 ~ +50 °C | IPX2 | 7,85 kg | 8,70 kg |

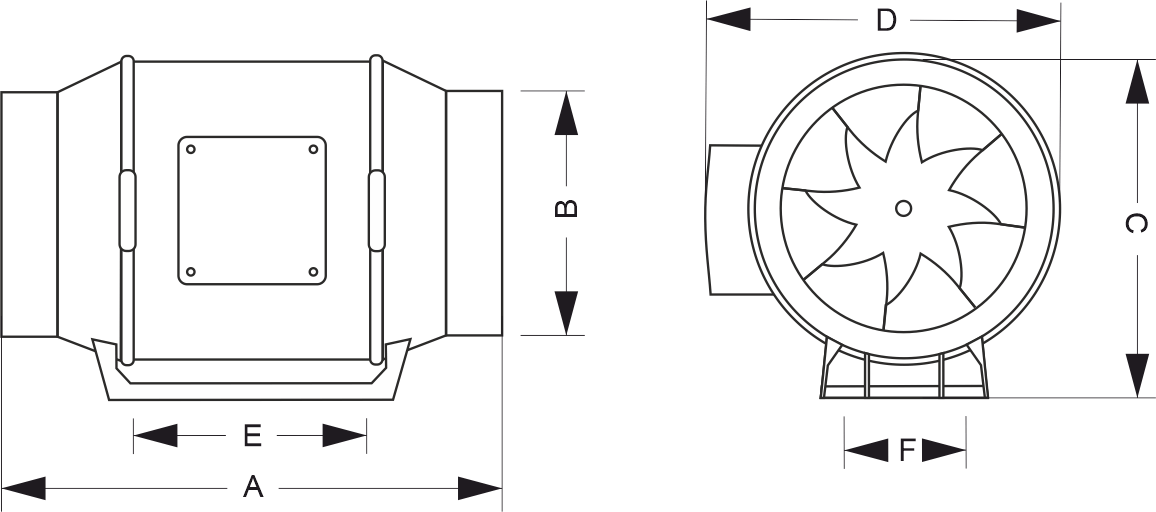

| [mm] | aRil ø 75 | aRil ø 100 | aRil ø 125 | aRil ø 150 | aRil ø 160 | aRil ø 200 | aRil ø 250 | aRil ø 310 |
|---|---|---|---|---|---|---|---|---|
| A | 226 | 225 | 258 | 310 | 290 | 297 | 377 | 448 |
| B | 72 | 95 | 122 | 145 | 155 | 198 | 245 | 300 |
| C | 155 | 155 | 155 | 210 | 210 | 230 | 280 | 330 |
| D | 170 | 170 | 170 | 220 | 220 | 245 | 280 | 345 |
| E | 49 | 49 | 58 | 60 | 60 | 80 | 135 | 195 |
| F | 57 | 57 | 58 | 83 | 83 | 90 | 100 | 100 |
Documents
Description
Models and technical data
Documents
Description
aRil eco duct fans are the ideal solution for industrial spaces such as workshops, halls, warehouses, and garages, where efficient ventilation is crucial.
These fans can be controlled using speed controllers. They feature a single-phase asynchronous induction motor designed for continuous operation, a centrifugal turbine, and a housing made of polymer materials.
Models and technical data
| diameter | code | air flow | static pressure | voltage frequency | rev (1/min) | motor power | current | max. work temp. | protection degree | net weight | gross weight |
| 75 | 01-310 | 140 m3/h | 132 Pa | 220-230 V ~50 Hz | 2820 | 30 W | 0,13 A | -20 ~ +50 °C | IPX2 | 1,19 kg | 1,39 kg |
| 100 | 01-311 | 210 m3/h | 147 Pa | 220-230 V ~50 Hz | 2770 | 30 W | 0,14 A | -20 ~ +50 °C | IPX2 | 1,21 kg | 1,42 kg |
| 125 | 01-312 | 360 m3/h | 147 Pa | 220-230 V ~50 Hz | 2615 | 43 W | 0,18 A | -20 ~ +50 °C | IPX2 | 1,49 kg | 1,78 kg |
| 150 | 01-313 | 560 m3/h | 350 Pa | 220-230 V ~50 Hz | 2530 | 70 W | 0,31 A | -20 ~ +50 °C | IPX2 | 2 kg | 2,39 kg |
| 160 | 01-314 | 560 m3/h | 350 Pa | 220-230 V ~50 Hz | 2530 | 70 W | 0,31 A | -20 ~ +50 °C | IPX2 | 2,24 kg | 2,60 kg |
| 200 | 01-315 | 1400 m3/h | 350 Pa | 220-230 V ~50 Hz | 2485 | 165 W | 0,64 A | -20 ~ +50 °C | IPX2 | 3 kg | 3,42 kg |
| 250 | 01-316 | 1800 m3/h | 460 Pa | 220-230 V ~50 Hz | 2650 | 180 W | 0,9 A | -20 ~ +50 °C | IPX2 | 5,44 kg | 6 kg |
| 310 | 01-317 | 2550 m3/h | 730 Pa | 220-230 V ~50 Hz | 2510 | 275 W | 1,3 A | -20 ~ +50 °C | IPX2 | 7,85 kg | 8,70 kg |

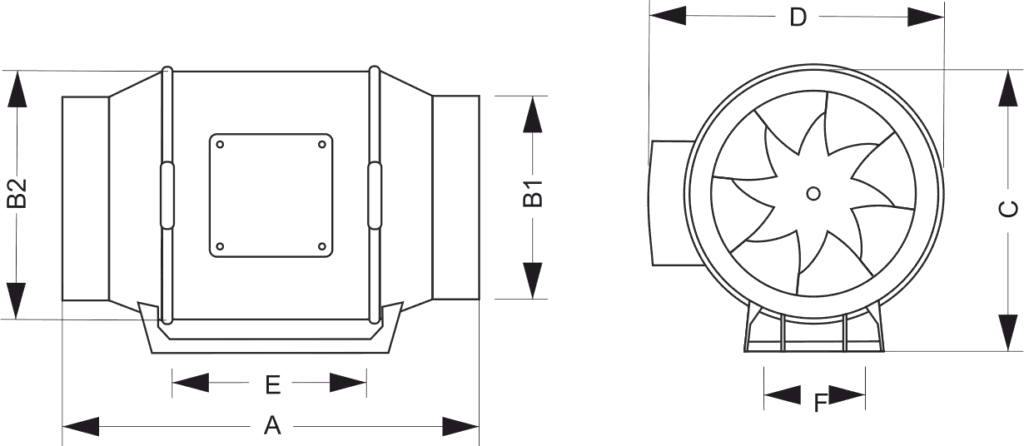

| [mm] | aRil ø 75 | aRil ø 100 | aRil ø 125 | aRil ø 150 | aRil ø 160 | aRil ø 200 | aRil ø 250 | aRil ø 310 |
|---|---|---|---|---|---|---|---|---|
| A | 226 | 225 | 258 | 310 | 290 | 297 | 377 | 448 |
| B | 72 | 95 | 122 | 145 | 155 | 198 | 245 | 300 |
| C | 155 | 155 | 155 | 210 | 210 | 230 | 280 | 330 |
| D | 170 | 170 | 170 | 220 | 220 | 245 | 280 | 345 |
| E | 49 | 49 | 58 | 60 | 60 | 80 | 135 | 195 |
| F | 57 | 57 | 58 | 83 | 83 | 90 | 100 | 100 |
Documents
