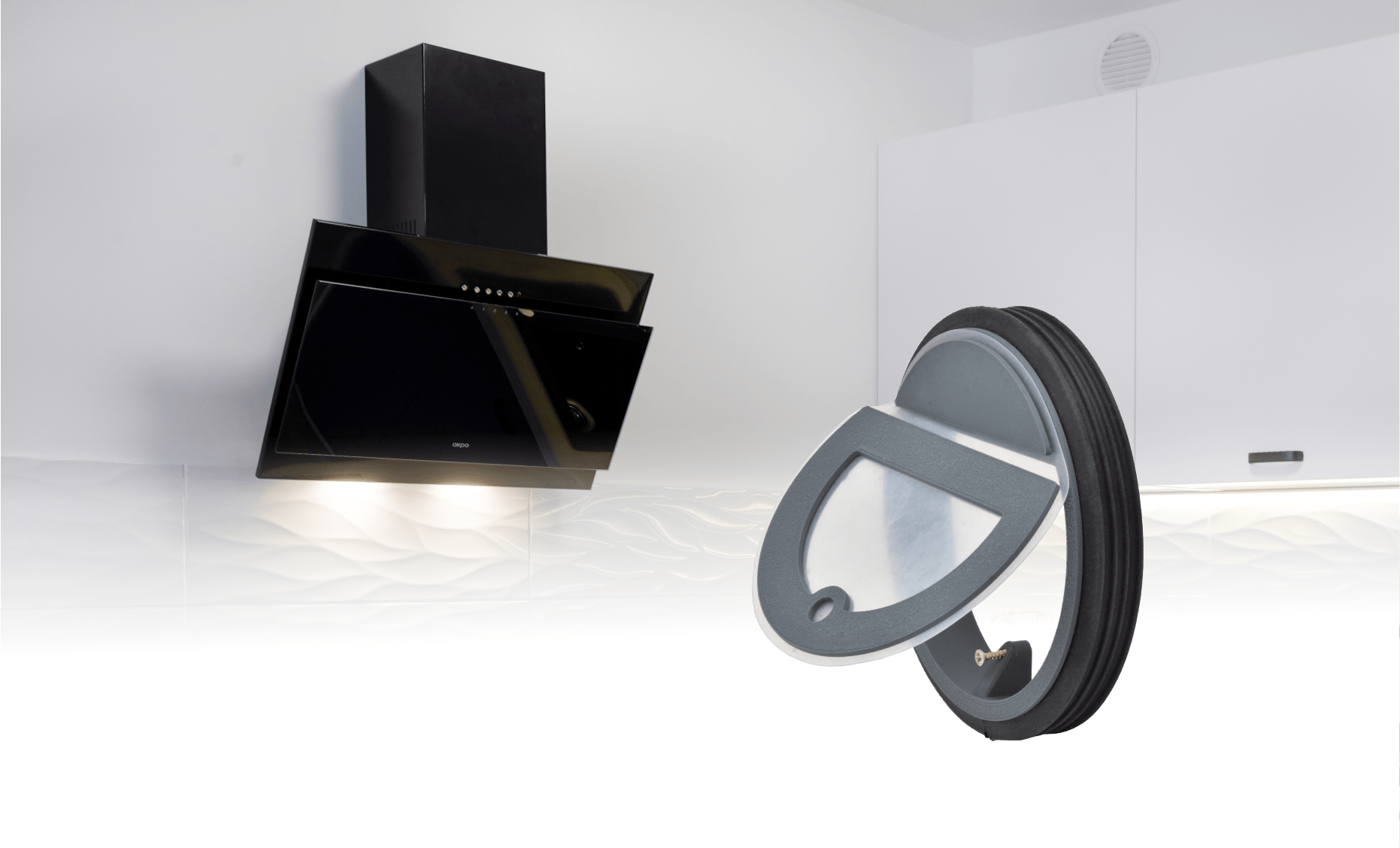

Back valve for industrial fans
Made of durable plastic, the airtight back valve provides effective protection against air backflow.
Ø 100 Ø 125 Ø 150 110×55
- valve designed for industrial fans
- made of durable plastic
- the neodymium magnet closure prevents accidental opening of the valve, increasing its tightness, while the screw allows for adjustment of the closing force
- the silicone membrane, due to its shape, adheres better to the valve structure, enhancing its effectiveness when closed
- seal made of rubber (the back valve for the flat duct 07-193, due to a different installation method, does not have a gasket)
Description
Models
Technical data
Mounting
Documents
3D
Description
A back valve is a ventilation component installed in the ventilation duct to prevent air backflow. When the fan is not operating, air from the ventilation system or the outside can enter the fan, causing several negative effects—ranging from room cooling and the entry of dirty air in winter to the spread of mold and fungi that have settled in the ventilation system.
The back valve ensures airflow in only one direction without significantly reducing the fan’s efficiency.
Models
| size | code |
|---|---|
| 100 | 07-194 |
| 125 | 07-195 |
| 150 | 07-196 |
| 110×55 | 07-193 |
Technical data
| size [mm] | A [mm] | B [mm] | C [mm] | D [mm] |
|---|---|---|---|---|
| 100 | 103 | 92 | 19 | 66 |
| 125 | 128 | 119 | 19 | 90 |
| 150 | 153 | 143 | 19 | 110 |
| 110×55 | 108×54 | 105×51 | 35 | 40 |
Mounting

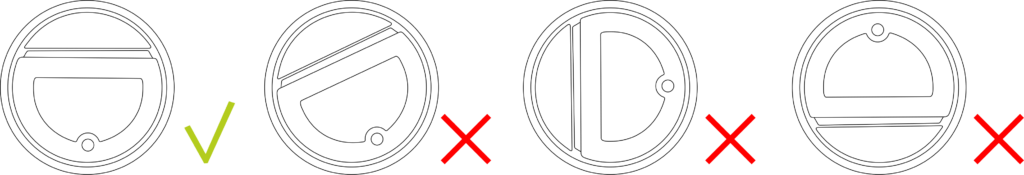

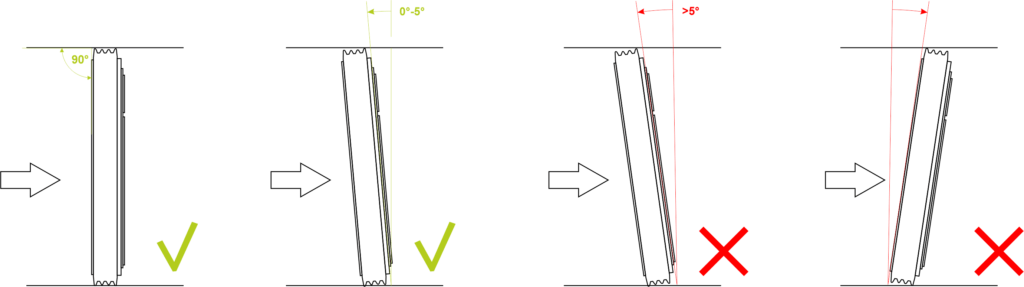

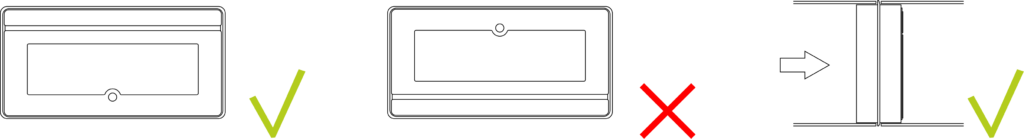

During the installation of the back valve, attention should be paid to the valve’s angle of inclination and the direction of airflow.
Documents
3D
