Flexible PVC ventilation duct
Flexible PVC ducts are used in ventilation, air conditioning and heat recovery systems. Thanks to their high flexibility, they are suitable for installations exposed to constant vibrations. The ducts are available in diameters ranging from 82 to 203 mm and in lengths of 10 meters.
Ø82
Ø102
Ø127
Ø152
Ø203
Models and technical data
Documents
Models and technical data
| code | name | mex lenght | compressed length |
|---|---|---|---|
| 02-2000 | Flexible PVC ventilation duct ∅82 | 10 m | 48 cm |
| 02-2001 | Flexible PVC ventilation duct ∅102 | 10 m | 26 cm |
| 02-2003 | Flexible PVC ventilation duct ∅127 | 10 m | 26 cm |
| 02-2005 | Flexible PVC ventilation duct ∅152 | 10 m | 22 cm |
| 02-2006 | Flexible PVC ventilation duct ∅203 | 10 m | 23 cm |
| Parameters | |
|---|---|
| Max lenght | 10 m |
| Operating temperature | -20 °C / +80 °C |
| Maximum air flow velocity | 30 m/sec |
| Pressure | 3000 Pa |

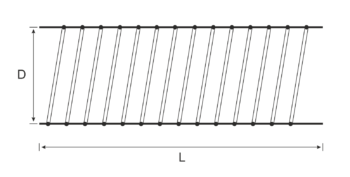

Dimesions of ducts
| Code | D [mm] | L [m] |
|---|---|---|
| 02-2000 | 82 | 10 |
| 02-2001 | 102 | 10 |
| 02-2003 | 127 | 10 |
| 02-2005 | 152 | 10 |
| 02-2006 | 203 | 10 |
