pRim domestic fan
The pRim domestic fan combines hybrid technology which ensures high aesthetic value, cleanliness and safety of use.
Ø 100 Ø 120 Ø 150
Available models:
It is connected via an electrical cube. It is a basic model and can be controlled with an individual switch or together with lighting
It is connected to a conventional socket via a plug and has a switch on a decorative cord.

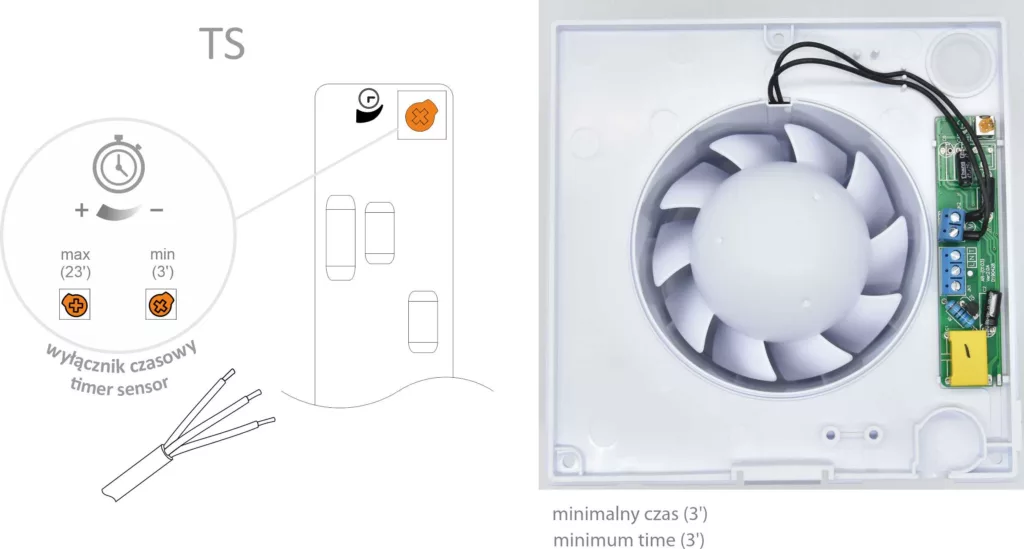

The fan turns on when power is applied (e.g., on a switch shared with the light) and will work until the power is turned off plus for the time set on the controller. This works well, for example, after a bath, where moisture is still blown out after the user leaves the bathroom.
The fan requires a three-wire cable, as it is necessary to connect the control cable.
Has a humidity sensor, which the user sets in the range of 40 – 80%. The fan turns on when the set threshold is exceeded by bounds (e.g., when taking a bath) and runs until the humidity level is lowered plus about 3 minutes – to maintain the effect.
The fan requires a three-wire cable, as it is necessary to connect the control cable.
pRim with ball bearing on special request only
The delicate grille on the front of the pRim fan was inspired by the nature of the sea wave.
It has a high-quality plain bearing and is designed to be wall-mounted with IPX4 protection. The turbine blades are designed with variable geometry which ensures quiet and economical work. High-quality plastic with antistatic additives and UV stabilisers guarantee the durability of the device, but also maintain its aesthetic qualities. The removable front – mounted with a click – allows access to the control board at any time without the need for tools, screws or adhesives. An additional levelling hole allows the fan to be immediately positioned correctly even before it is attached to the wall, making it easier for installers.
All our fans are equipped with thermal protection to prevent overheating. A back valve can be added to the fan to prevent reverse air flow.
| diameter | code | moodel | air flow | acoustic pressure | static pressure | voltage | motor power | engine speed | protection degree | net weight | gross weight | pcs in package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100 | 01-001 01-002 01-003 01-004 | S PS TS HS+TS | 104 m3/h | 1m 40dB 3m 39dB | do 35 Pa | 220-230V/ 50-60Hz | 15 W | 2400+-200 | IP X4 | PS 0,54 kg S/TS/HS ~ 0,45 kg | PS 0,63 kg S/TS/HS ~ 0,55 kg | 20 |
| 120 | 01-005 01-006 01-007 01-008 | S PS TS HS+TS | 158 m3/h | 1m 46dB 3m 44dB | do 35 Pa | 220-230V/ 50-60Hz | 16 W | 2200+-200 | IP X4 | PS 0,64 kg S/TS/HS ~ 0,57 kg | PS 0,74 kg S/TS/HS ~ 0,66 kg | 20 |
| 150 | 01-009 01-010 01-011 01-012 | S PS TS HS+TS | 257 m3/h | 1m 47dB 3m 45dB | do 21 Pa | 220-230V/ 50-60Hz | 20 W | 1450+-200 | IP X4 | PS 0,77 kg S/TS/HS ~ 0,70 kg | PS 0,88 kg S/TS/HS ~ 0,80 kg | 10 |
| [mm] | ø 100 | ø 120 | ø 150 |
|---|---|---|---|
| A | 160.5 | 180 | 210 |
| B | 113 | 113 | 113 |
| C | 100 | 120 | 150 |
| D | 85 | 85 | 85 |
![](/wp-content/uploads/2024/01/prim-TS-connect-1-1024x549.webp")
