Domestic fan dRim
The dRim fan has decorative panels to match any interior.
Ø 100 Ø 125
Available models:
It is connected via an electrical cube. It is a basic model and can be controlled by its own switch, for example, together with lighting
connected via a plug and is switched by decorative chain
The fan turns on when power is applied (e.g., on a switch shared with the light) and will work until the power is turned off plus for the time set on the controller. This works well, for example, after a bath, where moisture is still blown out after the user leaves the bathroom.
The fan requires a three-wire cable, as it is necessary to connect the control cable.
Has a humidity sensor, which the user sets in the range of 40 – 80%. The fan turns on when the set threshold is exceeded by bounds (e.g., when taking a bath) and runs until the humidity level is lowered plus about 3 minutes – to maintain the effect.
The fan requires a three-wire cable, as it is necessary to connect the control cable.
Turns on after 3 minutes after the power supply (e.g., turning on the light on the common switch)
If the power supply is cut off during this time – the fan will not switch on.
If the power supply is still given after this time – the fan will turn on and will work until the power is cut off plus for the time set on the controller after.
Useful when the user enters the room for a moment, for example, to wash his hands or take away a needed item.
The fan requires a three-wire cable, as it is necessary to connect the control cable.
has a motion sensor that activates the fan when it senses the user’s presence and runs for a specified time.
The fan requires a two-wire cable.
The dRim fan with removable panels adapts to any room in your home. The front of the fan has a panel holder that for decotartive panel thet covers the inlet, leaving a pleasant impression of a interior element. There is a choice of glass and polymer panels in the variety of colours that will make the room elegant. We have satinline which are difficult to get dirty, gloss line for extra clean effect, industial line for chrome details and nature line with fashionable prints. The decor replacement system is simple and allows you to wash or change the front whenever you need to. The special safety click system and the ball bearings allow our dRim to be mounted on the ceiling.
The shape of the fan blades makes soundless work. The motor has thermal protection on the wiring.
For the convenience of our customers, we sell fans and panels separately. Which means that you have to buy a panel for the device of your choice.
The 01-059 model, with its 12V power supply, offers a higher level of protection, making it a safe solution for any room, including areas with increased humidity. Power supply not included with the product.
A back valve can be added to the dRim fan to prevent reverse air flow. We also offer a ventilation grille for the dRim panel.
| size | code | models | air flow | acoustic pressure | voltage frequency | motor power | engine speed | protection degree | pcs in a package |
|---|---|---|---|---|---|---|---|---|---|
| 100 | 01-060 01-061 01-062 01-063 01-064 01-065 | S PS TS DTS HS+TS RMS | 93 m3/h | 1m 28dB 3m 26dB | 220-230V/ 50-60Hz | 11 W | 2400+200 | IP X 2 | 20 |
| 125 | 01-066 01-067 01-068 01-069 01-070 01-071 | S PS TS DTS HS+TS RMS | 140 m3/h | 1m 36dB 3m 34dB | 220-230V/ 50-60Hz | 14 W | 2400+200 | IP X 2 | 20 |
100 | 01-059 | S 12V | 93 m3/h | 1m 28dB 3m 26dB | 12V/50 Hz | 11W | 2200+200 | 20 |
| [mm] | drim ø100 | drim ø125 |
|---|---|---|
| A | 120 | 145 |
| B | 89 | 89 |
| C | 100 | 125 |
| D | 69 | 69 |
Discover the new dRim 12V Ø100 fan – the perfect combination of safety, ease of installation, and modern design. With its 12V power supply, this model offers a higher level of protection, making it a safe solution for any room, including areas with increased humidity.
The standard feature of interchangeable panels for the dRim allows you to easily match the fan to the style of your interior!
The fan is designed for permanent connecon to an indoor electrical installaon through a 12V AC (SELV) power supply with a minimum output current of no less than 2,5A. Power supply not included with the product.
The back valve prevent from backflow of the air into the room. It is assembled on the fan flange.It prevents from penetration of pollutants from the vent flue. The back valve provides the air flow in one direction only, without reducing significantly the efficiency of the fan.
| code | model |
| 01-160 | White gloss plexi panel |
| 01-161 | White mat plexi panel |
| 01-162 | Black gloss plexi panel |
| 01-163 | Red gloss plexi panel |

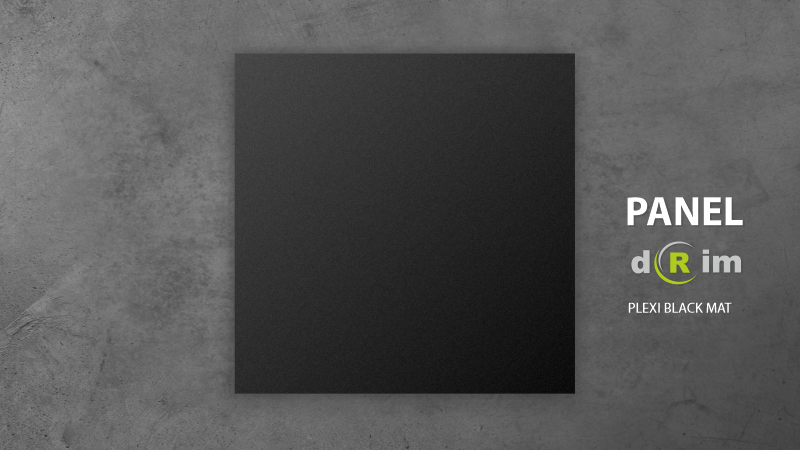

| 01-159 | Black mat plexi panel |
| 01-164 | Grey gloss plexi panel |
| 01-165 | Beige gloss plexi panel |
| 01-166 | Blue gloss plexi panel |
| 01-167 | Green gloss plexi panel |
| 01-168 | Brushed aluminium silver panel |
| 01-169 | Brushed aluminium gold panel |
| 01-170 | White gloss glass panel |
| 01-171 | White mat glass panel |
| 01-172 | Black mat glass panel |
| 01-173 | Red gloss glass panel |
| 01-174 | Black mat gloss panel |
| 01-176 | Satin gold glass panel |
| 01-177 | Satin silver glass panel |
| 01-185 | White gold marble glass panel |
| 01-186 | Black gold marble glass panel |
| 01-187 | Wood glass panel |
| 01-188 | Pink gold marble glass panel |
| 01-183 | ABS white gloss panel |
Choose your panel
