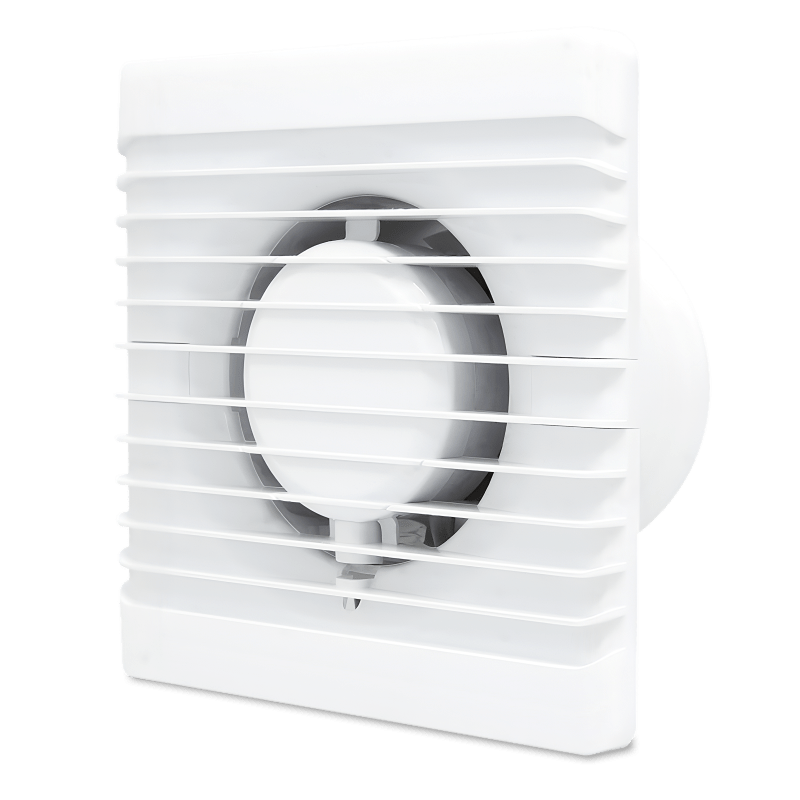

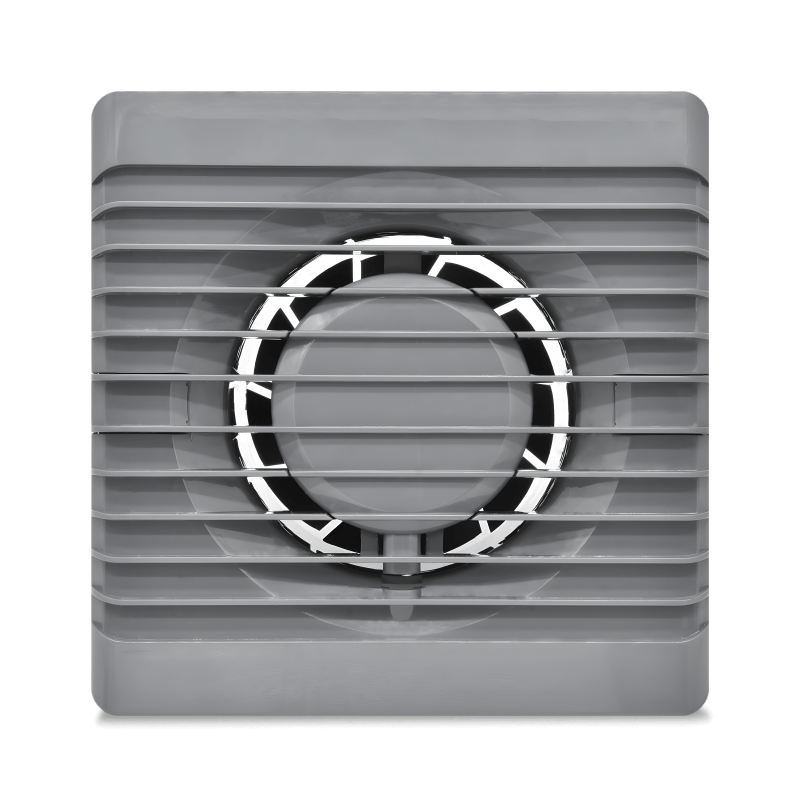

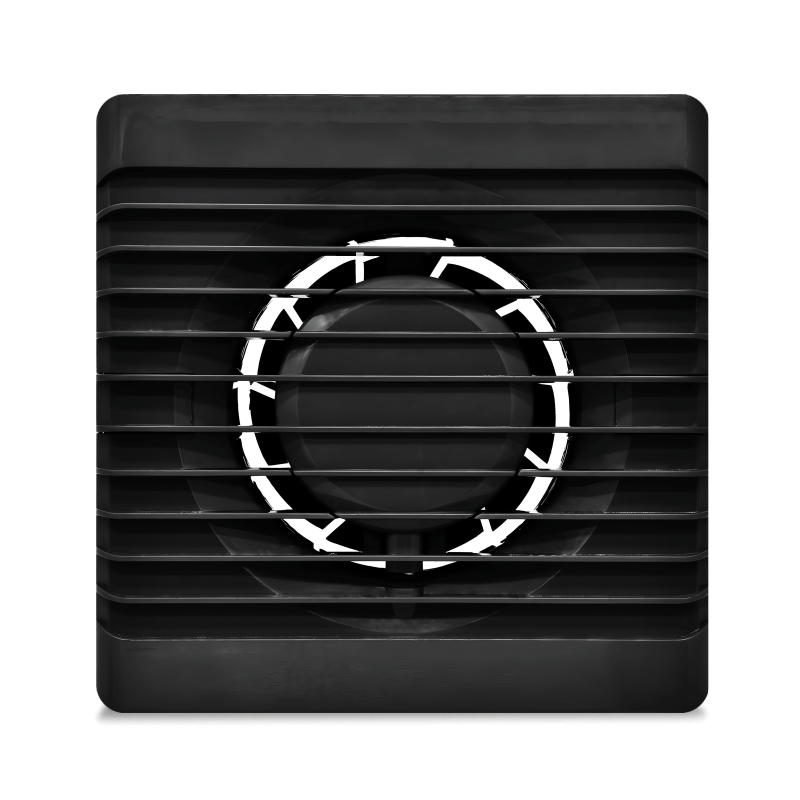

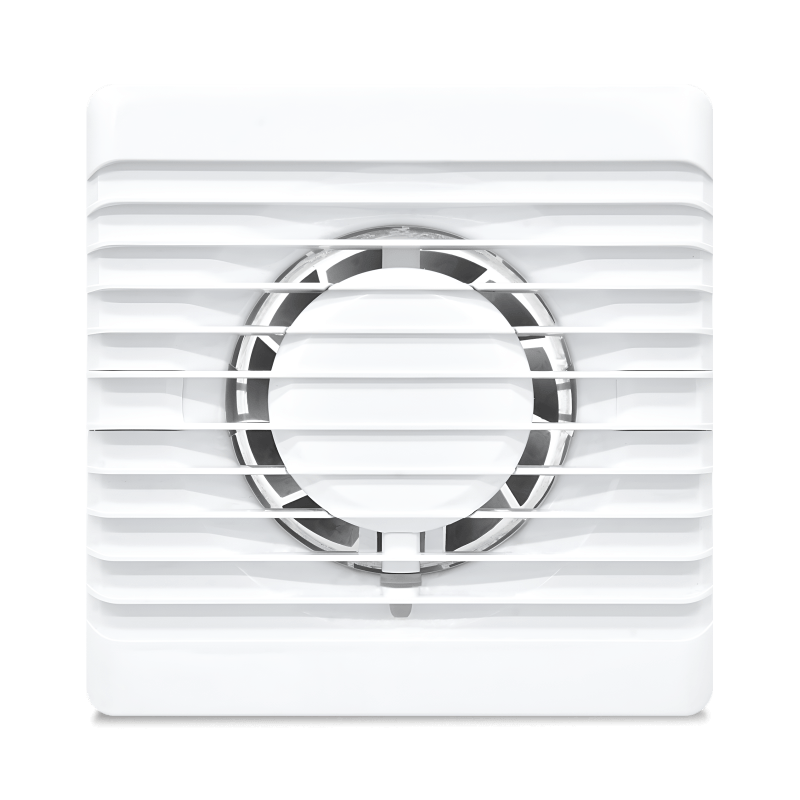

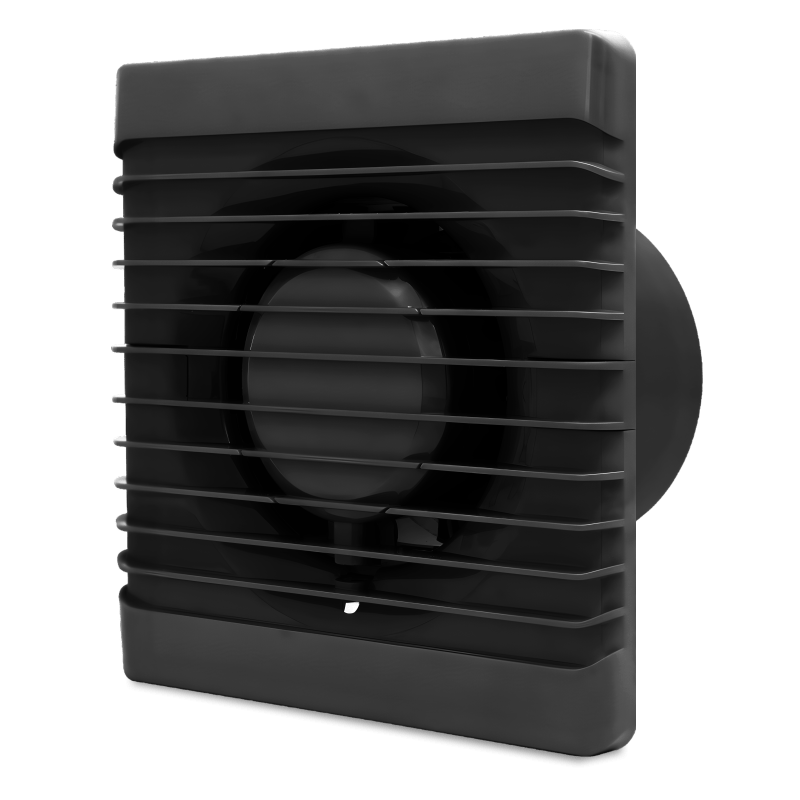

Domestic fan planet eneRgy
The family of planet enerRy wall fans combines pure modernist design with no visible assembly elements which ensures adaptation to any room.This fan has been created to both economical and very quiet operation. High-quality material does not yellow over time, and variable blade geometry ensures quiet and economical operation.
Ø 80 Ø 100 Ø 125
Available models:
connected via an electrical cube to the basic model and can be activated using its own switch, for example, together with the lighting
connected via a plug and is switched by cable switch
The fan turns on when power is applied (e.g., on a switch shared with the light) and will work until the power is turned off plus for the time set on the controller. This works well, for example, after a bath, where moisture is still blown out after the user leaves the bathroom.
The fan requires a three-wire cable, as it is necessary to connect the control cable.
Has a humidity sensor, which the user sets in the range of 40 – 80%. The fan turns on when the set threshold is exceeded by bounds (e.g., when taking a bath) and runs until the humidity level is lowered plus about 3 minutes – to maintain the effect.
The fan requires a three-wire cable, as it is necessary to connect the control cable.
The family of planet enerRy wall fans combines pure modernist design with no visible assembly elements which ensures adaptation to any room.This fan has been created to both economical and very quiet operation. High-quality material does not yellow over time, and variable blade geometry ensures quiet and economical operation.
The front removable flap facilitates access to the control panel without the need to disassemble the device, making it easy to operate.
All of our fans come with thermal protection, safeguarding against overheating. It is possible to add a back valve to prevent backflow.
| size | code | version | air flow | acoustic pressure | voltage frequency | motor power | rev. (1/min) | degree of protecion | net weight | gross weight | pcs in a package |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 80 | 01-053 01-054 01-056 | S PS TS | 86 m3/h | 1m 25dB 3m 23dB | 230 V, 50Hz | 8 W | 2400+-200 | IP X2 | PS 0,28 kg S/TS ~0,30kg | PS 0,29 kg S/TS ~0,32kg | 20 |
| 100 | 01-090 01-091 01-092 01-093 | S PS TS HS+TS | 93 m3/h | 1m 26dB 3m 25dB | 230 V, 50Hz | 11 W | 2400+-200 | IP X2 | PS 0,31 kg S/TS/HS+TS ~0,33kg | PS 0,37 kg S/TS/HS+TS ~0,39kg | 20 |
| 125 | 01-095 01-096 01-097 01-098 | S PS TS HS+TS | 140 m3/h | 1m 36dB 3m 34dB | 230 V, 50Hz | 14 W | 2400+-200 | IP X2 | PS 0,34kg S/TS/HS+TS ~0,36kg | PS 0,41 kg S/TS/HS+TS ~0,45kg | 20 |

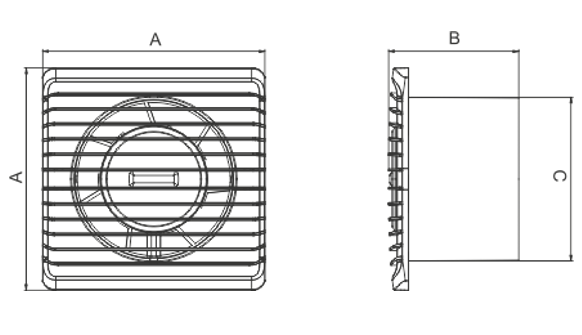

| [mm] | planet eneRgy ø 80 | planet eneRgy ø 100 | planet eneRgy ø 125 |
|---|---|---|---|
| A | 135 | 135 | 160 |
| B | 81 | 79 | 79 |
| C | 79.4 | 99.4 | 124.4 |
